OBS

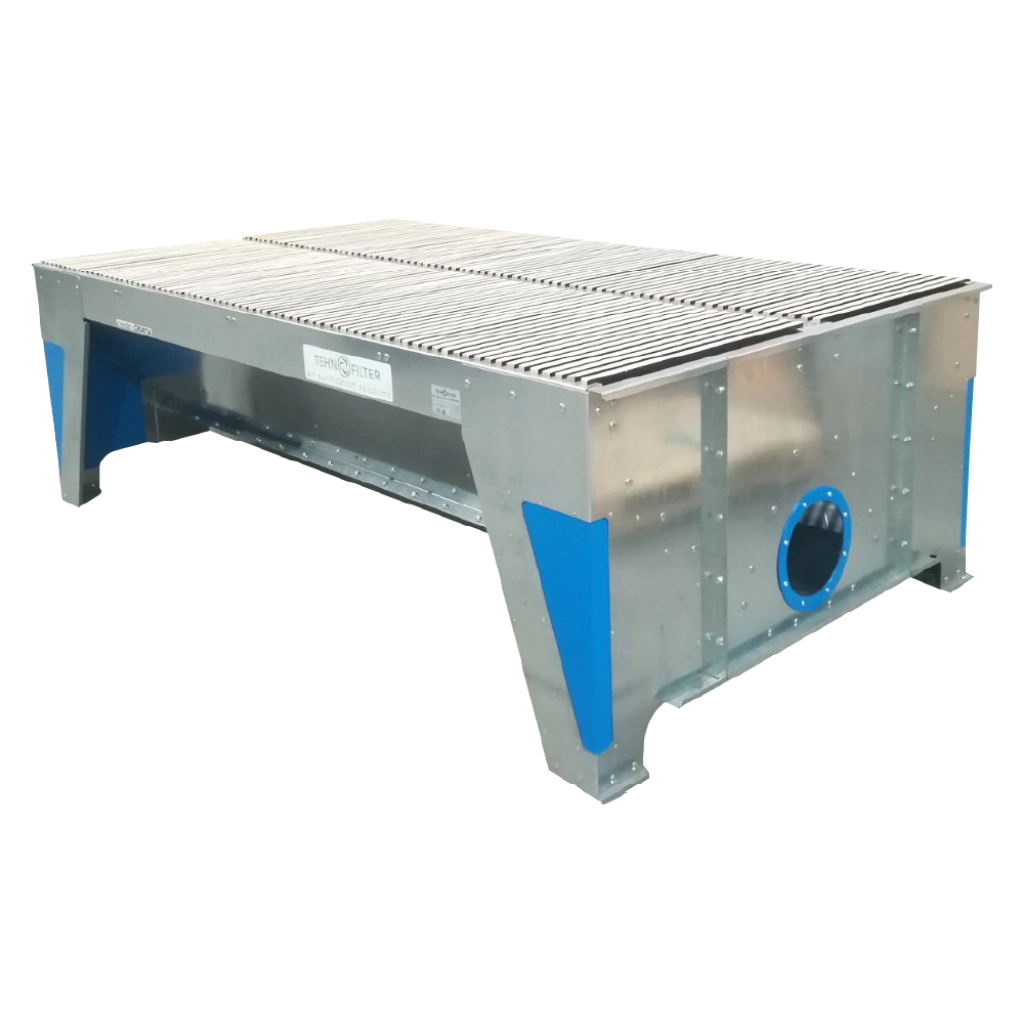

OBS is an industrial grinding and sanding table designed to capture wood dust directly at the workstation when connected to an extraction and filtration system.
Woodworking grinding table
OBS 12-12, 12-20 and 15-30
Maximum airflow: 9,000 m³/h
Need help selecting the right OBS table? Call +385 (0)31 701 211 and our team will help you choose the right model.
Product description
Clean and Practical Woodworking
OBS is a high quality industrial table designed for sanding, grinding and cutting wood. When connected to an external fan or filtration system, dust generated during processing is extracted directly through the worktable before it spreads into the surrounding area. The stable steel construction provides a reliable working surface, while the open area below the table offers generous knee and legroom for the operator.
Technical data
Specifications
The values presented are indicative and refer to the standard configuration. Final performance parameters are determined based on your process requirements and the number of workstations.
| Air flow | 2900 m³/h |
|---|---|
| Dimensions (L × W × H) |
1306 × 1375 × 939 mm |
| Weight | 200 kg |
| Air flow | 4800 m³/h |
|---|---|
| Dimensions (L × W × H) |
1306 × 2175 × 939 mm |
| Weight | 290 kg |
| Air flow | 7000–9000 m³/h |
|---|---|
| Dimensions (L × W × H) |
1606 × 2940 × 939 mm |
| Weight | 360 kg |
Advantages
Why OBS
Download
Documentation
Technical documentation and certificates
Related products
You might also be interested in
TFG
Industrial grinding tables designed to capture dust, fumes and airborne particles directly at the workstation during welding, grinding and deburring processes.
Are you interested in OBS?
Tell us about your woodworking process, workpiece dimensions and available extraction system, and our team will recommend the right OBS model and prepare a tailored quote.
