FOM

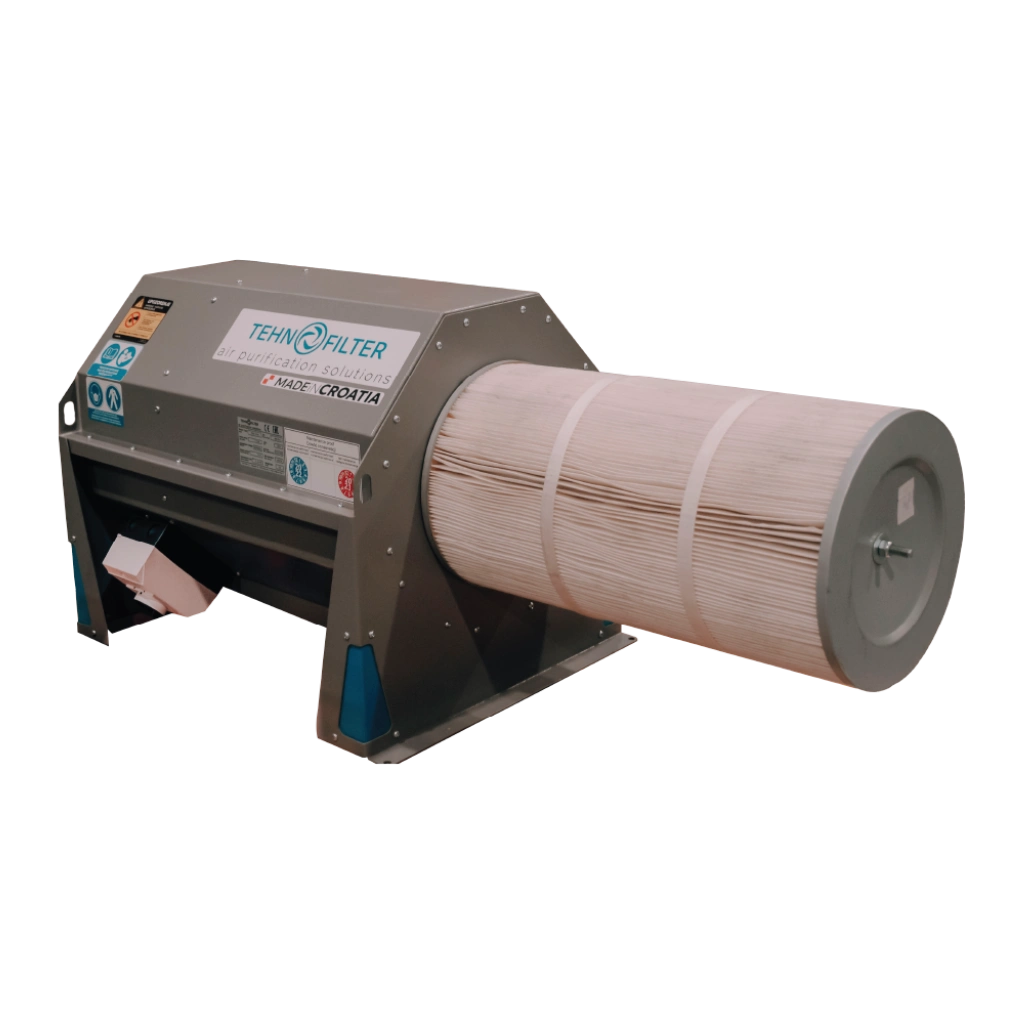

FOM is a compact oil mist filter designed for direct installation on CNC machines using a flexible connection hose.
Stationary oil mist filter
Models: FOM 1600, 2100, 2800 and 3200
Maximum airflow: 3,200 m³/h
Need help selecting the right FOM model? Call +385 (0)31 701 211 and our team will help you choose the right solution for your CNC machine.
Product description
Efficient Oil Mist Filtration for CNC Machines
FOM is a compact oil mist filter designed for direct installation on CNC machines using a flexible hose. Its two stage mechanical filtration system efficiently captures oil mist, emulsion mist, minimal quantity lubricant mist and smoke generated during machining processes. Separated lubricant can be collected for disposal or returned to the machine, depending on the installation configuration. After filtration, the cleaned air can be returned to the workplace, helping maintain a cleaner and more comfortable production environment. The compact housing allows easy machine installation, while the accessible design enables filter replacement and maintenance without special tools.
Technical data
Specifications
The values presented are indicative and refer to the standard configuration. Final performance parameters are determined based on your process requirements and the number of workstations.
| Motor power | 0.75 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 1600 m³/h |
| Pressure | 1000 Pa |
| Total filter surface | 10 m² |
|---|---|
| Number of filter cartridges | 1 |
| Sound level | ≤ 75 dB(A) |
| Weight | 85 kg |
| Dimensions (W × D × H) |
574 × 1404 × 582 mm |
| Motor power | 1.1 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 2100 m³/h |
| Pressure | 1050 Pa |
| Total filter surface | 10 m² |
|---|---|
| Number of filter cartridges | 1 |
| Sound level | ≤ 75 dB(A) |
| Weight | 99 kg |
| Dimensions (W × D × H) |
574 × 1404 × 582 mm |
| Motor power | 1.5 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 2600 m³/h |
| Pressure | 1340 Pa |
| Total filter surface | 10 m² |
|---|---|
| Number of filter cartridges | 1 |
| Sound level | ≤ 75 dB(A) |
| Weight | 145 kg |
| Dimensions (W × D × H) |
574 × 1404 × 582 mm |
Advantages
Why FOM
Download
Documentation
Technical documentation and certificates
Related products
You might also be interested in
Technomatic
A multistage oil mist collector developed for demanding CNC applications and continuous operation.
Are you interested in FOM?
Tell us about your CNC machine, machining process, type of mist, required airflow and preferred installation arrangement, and our team will recommend the right FOM model and prepare a tailored quote.
