FC
FC is an economical mobile bag filter designed for extracting sawdust and wood dust from processing machines and individual workstations.
Mobile bag filter
Models: FC 1, FC 2 and FC 3
Maximum airflow: 3,000 m³/h
Need help selecting the right FC model? Call +385 (0)31 701 211 and our team will help you choose the right configuration.
Product description
Economical Mobile Dust Extraction

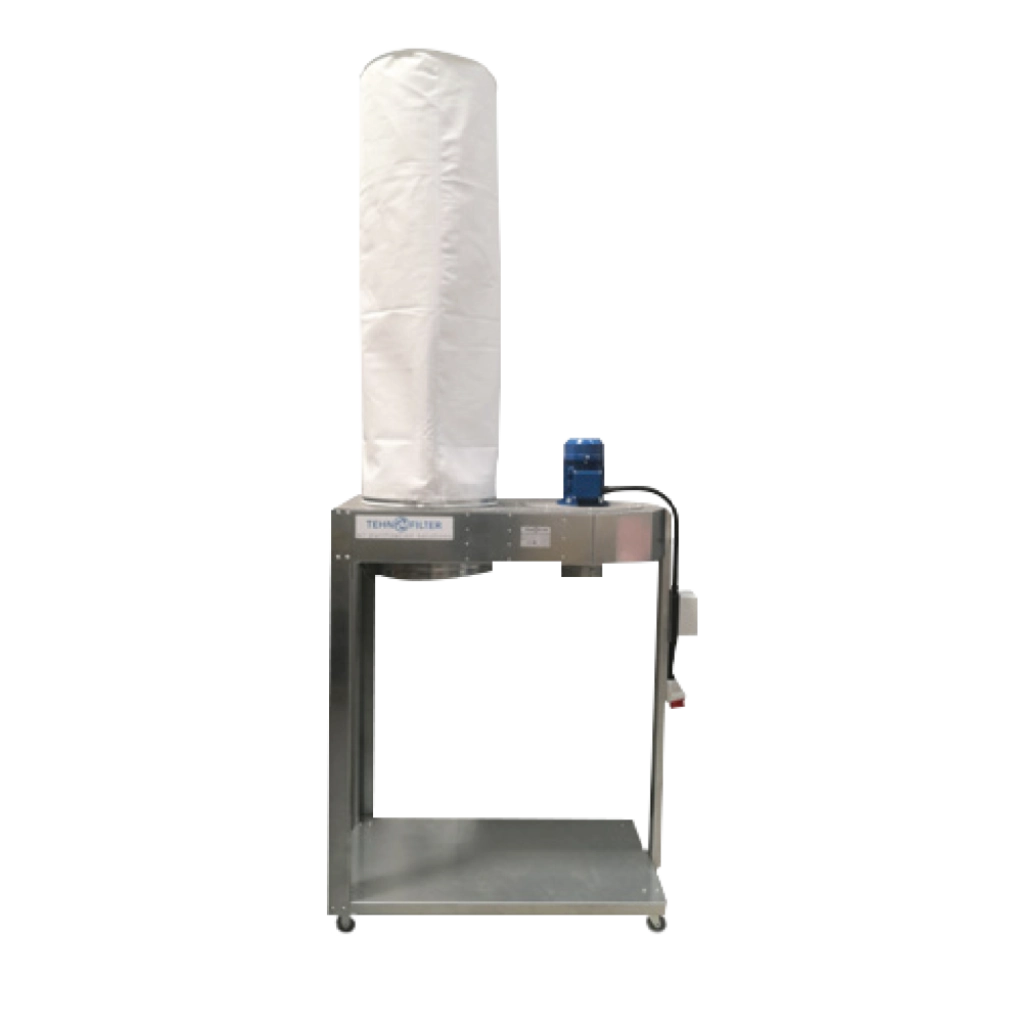

FC is a simple and cost effective mobile filter for extracting sawdust and dust generated during wood processing. The integrated suction fan allows the unit to be connected directly to individual machines or multiple workstations. One or more filter elements are positioned above the main housing, while a collection bag at the bottom receives the separated waste material. The unit is intended for indoor use and can be moved whenever extraction is required at a different location.
Technical data
Specifications
The values presented are indicative and refer to the standard configuration. Final performance parameters are determined based on your process requirements and the number of workstations.
| Motor power | 1.1 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 1000 m³/h |
| Number of filter bags | 1 |
|---|---|
| Sound level | ≤ 75 dB(A) |
| Dimensions (W × D × H) |
670 × 1238 × 3018 mm |
| Motor power | 2.2 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 2000 m³/h |
| Number of filter bags | 2 |
|---|---|
| Sound level | ≤ 75 dB(A) |
| Dimensions (W × D × H) |
670 × 1838 × 3018 mm |
| Motor power | 3 kW |
|---|---|
| Voltage | 400 V |
| Rated frequency | 50 Hz |
| Maximum air flow | 3000 m³/h |
| Number of filter bags | 3 |
|---|---|
| Sound level | ≤ 75 dB(A) |
| Dimensions (W × D × H) |
670 × 2438 × 3018 mm |
Advantages
Why FC
Download
Documentation
Technical documentation and certificates
Related products
You might also be interested in

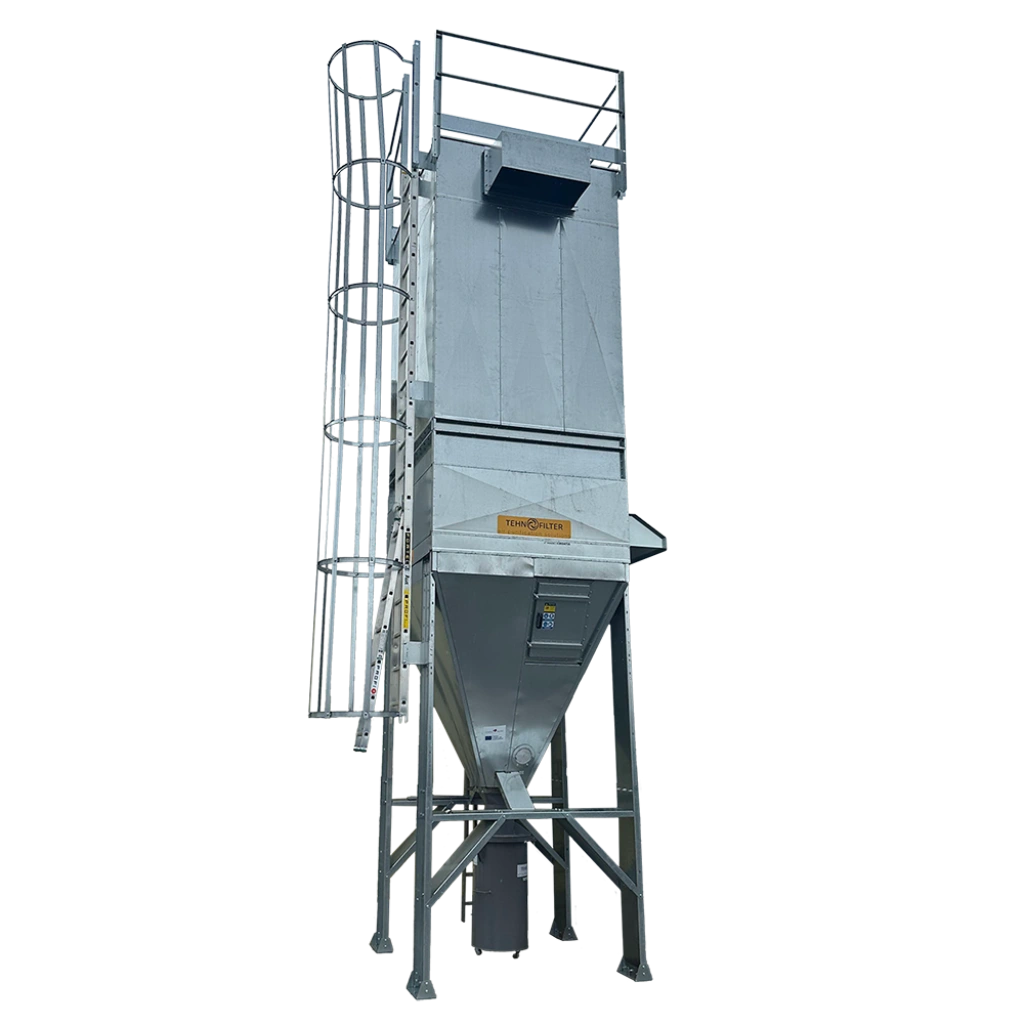

MVF
Powerful mobile bag filter designed to extract different types of dust from one or multiple sources in continuous industrial operation.
Are you interested in FC?
Tell us about your machines, dust type, number of extraction points and required airflow, and our team will recommend the right FC model and prepare a tailored quote.
